THERMAL IMAGER

  •
    Read More
    Quick View

    IR-890 New arrival Thermal imager
    Display 2.5″color lcd display
    IR solution 60×60（3600 pixels）
    Visible Light Image Resolution 300,000 pixels
    Field of View 20×20°
    Thermal sensitivity 0.15℃/0.27℉
    Temperature range -20～300℃/-4～572℉
    accuracy ±2% or reading±2℃/3.6℉
    emissivity Adjustable 0.1～1.0
    Image frequency 6HZ
    Spectral Range 8-14um
    Focus mode fixed
    Color palette Iron color, Rainbow, black and white.

    Contrast, Grayscale (white hot) and Grayscale (black hot)
    View options Blending of the visual and the infrared

    from full infrared to full visual in 25 % steps
    File format bmp
    Image storage Micro SD card
    Memory view Scroll through all saved images and view on-screen
    Power save Power off after 12 minutes of inactivity
    Working temperature -5～40℃/23～104℉
    Storage temperature -20～55℃/-4～131℉
    Relative humidity 10～80%RH
    Electromagnetic Compatibility CE EN61326-1:2006
    Overrange indiction over
    Power supply 4*1.5V “AA” size Lithium battery
    Battery life 6H
    weight 310g
    size 223×88×65
    Note: accuracy is measured in an 18-28 degree environment
    Read More
    Quick View
  •
    Read More
    Quick View

    IR-895/898/899 Thermal imager camera
    IR-895 IR-898 IR-899
    Infrared image resolution 160×120 220×160 320×240
    Infrared image resolution 300,000 pixel
    Display screen 3.5” TFT color display
    LCD resolution 320×240
    Field angle 35°×26°
    Shortest focus length 0.15m
    Thermal sensitivity 0.07℃
    Temperature

    range

    		 -20 to 450℃/

    -4 to 842℉

    		 -20 to 300℃/

    -4 to 572℉
    Accuracy ±2% or reading ±2℃/3.6℉
    Emissivity Adjustable from 0.01 to 1.00
    Frame rate of thermal images 9Hz
    Wavelength coverage 8μm to 14μm
    Focus mode Fixed
    Color palette Rainbow, iron oxide red, cold color,black & white, white & black
    Storage capacity Built-in 3G (above 20 thousand image stored)
    File format JPG
    USB Type-C
    Battery 18650 battery（Size:∮18.5×69mm）
    Working time 2-3 hours
    Automatic power-off Selectable: 5 minutes/20 minutes/ not power off automatically
    Language, English、Chinese、Italian、German
    size 221×96×88mm
    Weight 374g
    Work temperature 0℃ to 45℃/ 32 to 113℉
    Storage temperature -20℃ to 60℃/ -4 to 140℉
    Relative humidity ＜85%RH
    Read More
    Quick View
  •
    Read More
    Quick View

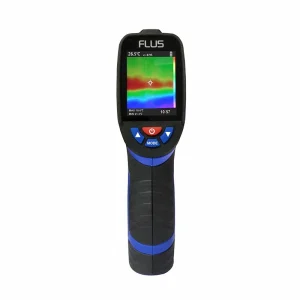

    IR-891 New arrival Thermal imager
     Model IR-891 IR-893
    Infrared Image Resolution 33X 33 (1089 pixels)
    Display resolution 240*320 pixels
    Visual Image Resolution 300000pixels
    Field Angle 32* 32 degrees
    Infrared Temp. Range -20~380℃ /-4~716℉
    Accuracy ＞ 0 ℃, ±2% or reading ±2℃ /3.6℉

    ＜ 0℃, ±3℃ /5.4℉

    Note: Accuracy is measured in an environment of 18-28 degrees.
    Ambient Temp. Range N/A -20~70℃ /-4~158℉: ±1.0 ℃/1.8℉
    Ambient Humidity Range N/A 0~ 100%RH;35~70% RH; ±3.0% RH; Others: ±4.0% RH
    Dew Point Temp. Range N/A -30～100℃/-22～212℉; ±1.0℃/1.8℉（25℃/77℉, 35～70%RH）
    Wet Bulb Temp. Range N/A -30～100℃/-22～212℉; ±1.0℃/1.8℉（25℃/77℉, 35～70%RH)
    Best Focus Distance 0.5m
    Thermal Sensitivity 0.15℃/0.27℉
    Emissivity Adjustable from 0.1 to 1.0
    Image Frequency 9HZ
    Spectral Range 8-14um
    Focus Mode Fixed
    Palette Ink color, black and white, rainbow color, ocean blue, iron red
    View Options 25% step length, full infrared vision to full visible light visual and infrared mixing. Edge detection line
    File Format BMP
    Storage 8GB Micro SD Card
    Memory View Scroll all saved images and view them on the screen
    USB function Connect USB cable with PC, meter works as U Disk, stored data in SD card can be download to computer directly, connected USB cable with other power supply and meter, USB can power supply to the meter directly and meter works as usual during this time
    Auto Power Off 3minutes, 5 minutes, 10 minutes are optional
    Working Temperature -5～40℃/23～104℉; 10% RH~80%RH
    Storage Temp.Range -20～55℃/-4～131℉; 10% RH~80%RH
    Over-range Indication OVER
    Power Supply 4* LR6 AA battery and USB power supply
    Read More
    Quick View
  •
    Read More
    Quick View

    IR-893 Thermal imager camera



     Model IR-891 IR-893
    Infrared Image Resolution 33X 33 (1089 pixels)
    Display Resolution 240*320 pixels
    Visual Image Resolution 300000pixels
    Field Angle 32* 32 degrees
    Temp. Range -20~380℃ /-4~716℉
    Accuracy ＞ 0 ℃, ±2% or reading ±2℃ /3.6℉

    ＜ 0℃, ±3℃ /5.4℉

    Note: Accuracy is measured in an environment of 18-28 degrees.
    Ambient Temp. Range N/A -20~70℃ /-4~158℉:±1.0℃/1.8℉
    Ambient Humidity Range N/A 0~ 100%RH;35~70% RH;±3.0% RH;

    Others; ±4.0% RH
    Dew Point Temp. Range N/A -30～100℃/-22～212℉;±1.0℃/1.8℉（25℃/77℉, 35～70%RH）
    Wet Bulb Temp. Range N/A -30～100℃/-22～212℉;±1.0℃/1.8℉（25℃/77℉, 35～70%RH)
    Best Focus Distance 0.5m
    Thermal Sensitivity 0.15℃/0.27℉
    Emissivity Adjustable from 0.1 to 1.0
    Image Frequency 9HZ
    Spectral Range 8-14um
    Focus Mode Fixed
    Palette Ink color, black and white, rainbow color, ocean blue, iron red
    View Options 25 % step length, full infrared vision to full visible light visual and infrared mixing. Edge detection line.
    File Format BMP
    Storage 8GB Micro SD Card
    Memory View Scroll all saved images and view them on the screen
    USB function Connect USB cable with PC, meter works as U Disk, stored data in SD card can be download to computer directly, connected USB cable with other power supply and meter, USB can power supply to the meter directly and meter works as usual during this time
    Auto Power Off 3minutes, 5 minutes, 10 minutes are optional
    Working Temperature -5～40℃/23～104℉; 10%RH to 80%RH
    Storage Temp.Range -20～55℃/-4～131℉; 10%RH to 80%RH
    Over-range Indication OVER
    Power Supply 4* LR6 AA battery and USB power supply
