IR-895 Thermal imager camera

IR-895 IR-898 IR-899
Infrared image resolution 160×120 220×160 320×240
Infrared image resolution 300,000 pixel
Display screen 3.5” TFT color display
LCD resolution 320×240
Field angle 35°×26°
Shortest focus length 0.15m
Thermal sensitivity 0.07℃
Temperature

range

-20 to 450℃/

-4 to 842℉

-20 to 300℃/

-4 to 572℉

Accuracy ±2% or reading ±2℃/3.6℉
Emissivity Adjustable from 0.01 to 1.00
Frame rate of thermal images 9Hz
Wavelength coverage 8μm to 14μm
Focus mode Fixed
Color palette Rainbow, iron oxide red, cold color,black & white, white & black

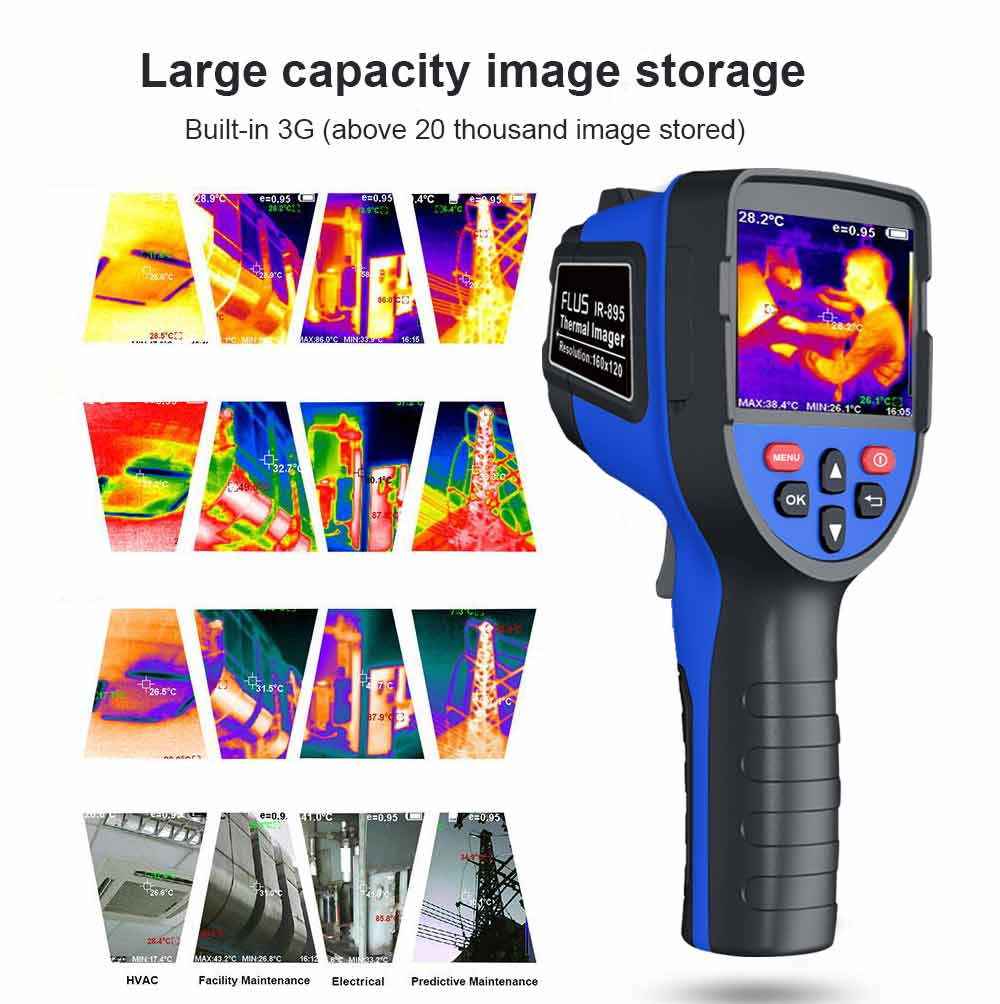

Storage capacity Built-in 3G (above 20 thousand image stored)
File format JPG
USB Type-C

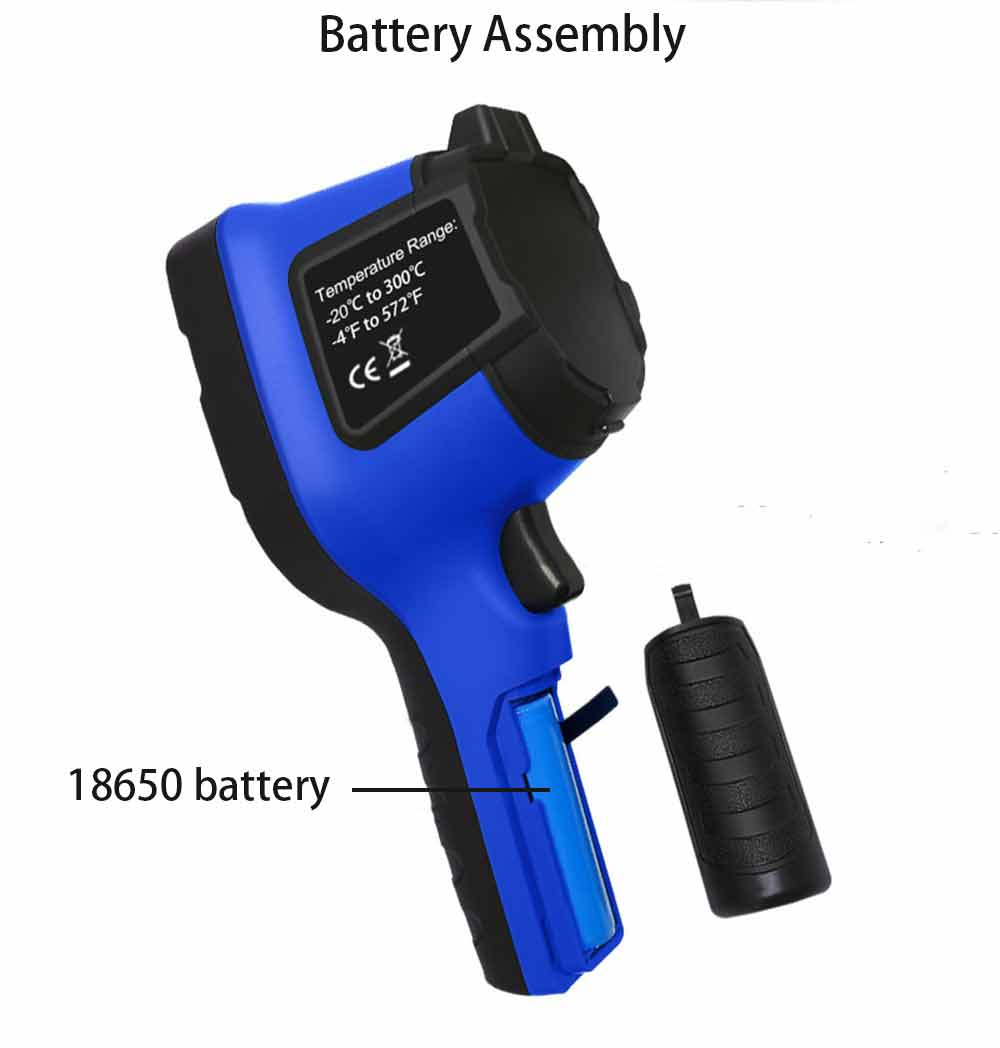

Battery 18650 battery(Size:∮18.5×69mm)
Working time 2-3 hours
Automatic power-off Selectable: 5 minutes/20 minutes/ not power off automatically
Language, English、Chinese、Italian、German
size 221×96×88mm
Weight 374g
Work temperature 0℃ to 45℃/ 32 to 113℉
Storage temperature -20℃ to 60℃/ -4 to 140℉
Relative humidity <85%RH
Category: Tag:

Description

Product name thermal imaging camera
Infrared image resolution 160×120
Field angle 35°×26°
Display screen 3.5” TFT color display
LCD resolution 320×240
Warranty 1 year
Customized support OEM, ODM, and software reengineering
Shortest focus length 0.15m
Thermal sensitivity 0.07℃
Emissivity Adjustable from 0.01 to 1.00
Visible light image resolution 300000 pixels
Color palette Rainbow, iron oxide red, cold color,black & white, white & black
Store the image JPG
